PML-S1015 Shear Lock

Model number: PML-S1015

Inquiry
Quantity

Features

  • Micro controller with door opening delay and door sensor output functions.
  • Suitable for 90° or 180° door open aluminum or wooden doors.
  • Auto adjustable power supply 12 / 24V.
  • Relock function will activate to lock the door automatically(Max. 60 times per session) when the door is not locked properly.
  • Max. holding force up to 1200kg. Max. magnetic distance up to 5mm (@24V).

Specifications

  • Power Input : DC 12V±15% /  DC 24V±15%
  • Monitor Output : N.O. & N.C.(Max. 24V/1A)(Hall Effect Sensor)
  • Operation Delay Time : 0.5 Sec.~25Sec.
  • Max. Shear Holding Forces : 1200Kg(2600Lbs.)
  • Operation Temperature : -30℃~50℃
  • Weight : 1.2Kg(2.65Lbs)
  • Magnetic Distance : (Max.) 3.0mm@12V / 5.0mm@24V
Operation Current
  • Operation Current : 900mA(min)±5% / 12VDC
  • Holding  Current : 220mA±5% /  12VDC
  • Operation Current :900mA(min)±5% / 24VDC
  • Holding  Current : 190mA±5% /  24 VDC

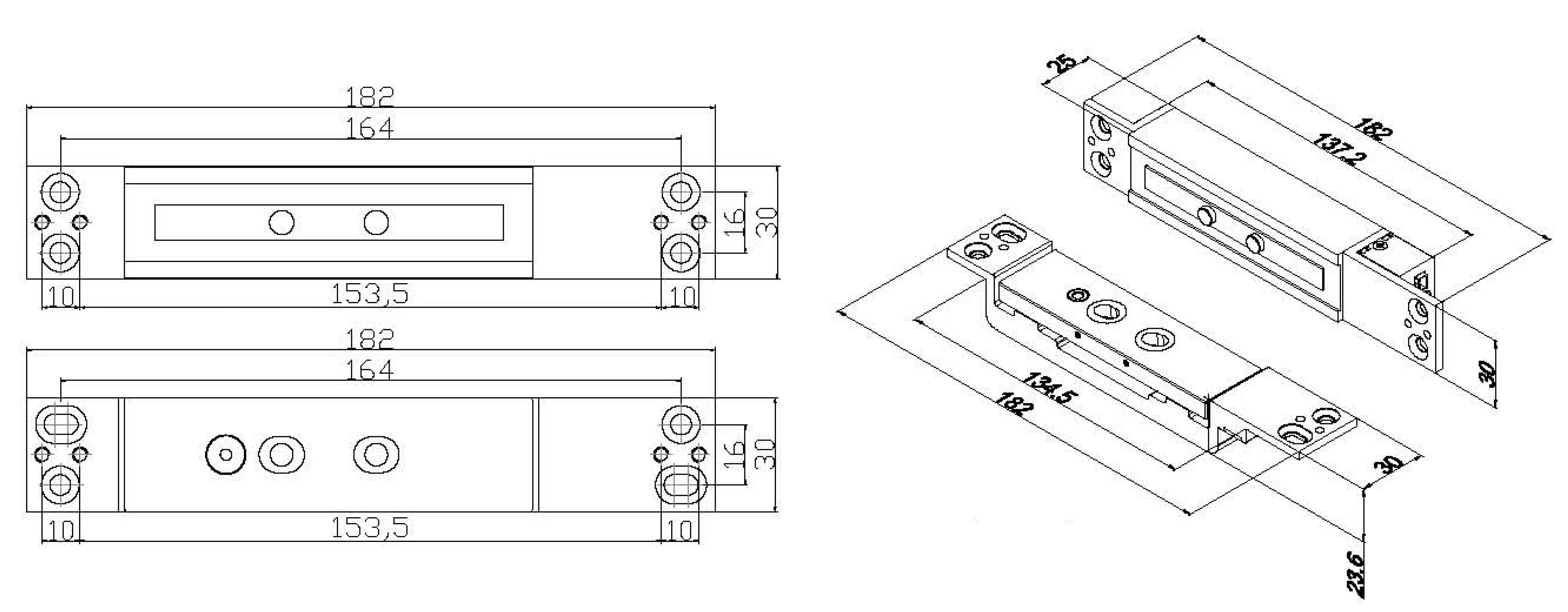

Dimension: Unit: mm

/storage/system/electric_lock/PML-S1015/S1015.jpg

We reserve the right to change the specification without prior notice or obligation!
