Multi-Function Networked controller
Features
- Single door (one-way or two-way control)
- Classic Graphic Display Multi-Function Controller
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only(DIM series : personal code), Card with PIN code
- IP54 weatherproof for indoor/outdoor use
Specification
| Model No. | PP-6750VXNR5 | PP-6750VXHR5 | PP-6750VXM0R5 | PP-6750VXFR5 | |
|---|---|---|---|---|---|
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional) | ISO18092 FeliCa | |
| User Capacity | 32000 card capacity ; 32000 events DIM series : 9999 card capacity ; 32000 events | ||||
| Power Voltage | DC 12V | ||||
| Interface | RS-485, RS-232 & TCP/IP (Optional) | ||||
| Wiegand input | Wiegand (26/34 bits) | ||||
| Input | Exit push button / Door monitor / Security sensor | ||||
| Output | Alarm output / Tamper switch output / Electric lock output | ||||
| LCD Panel | YES | ||||
| Keypad | YES | ||||
| Material | ABS | ||||
| Dimensions (LxWxH)mm | 138x85x29 | ||||
| IP Rating | IP54 | ||||

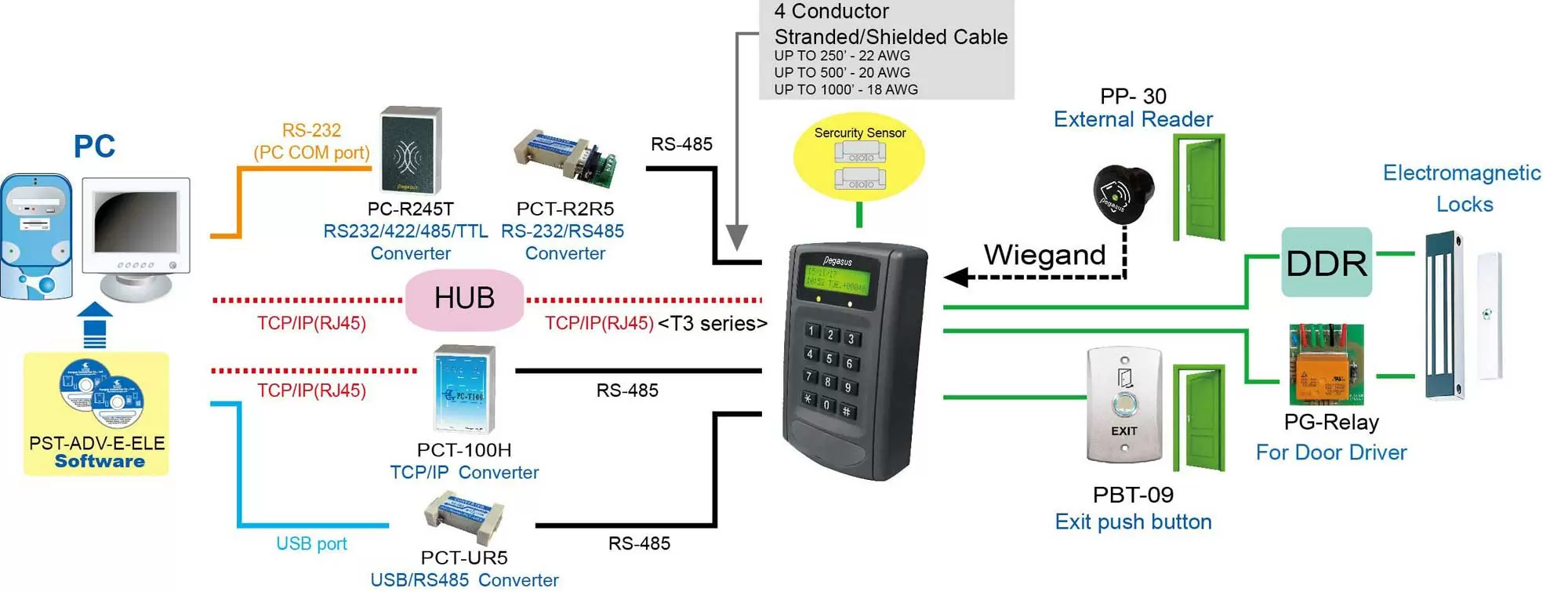

System configuration
Lift access control system

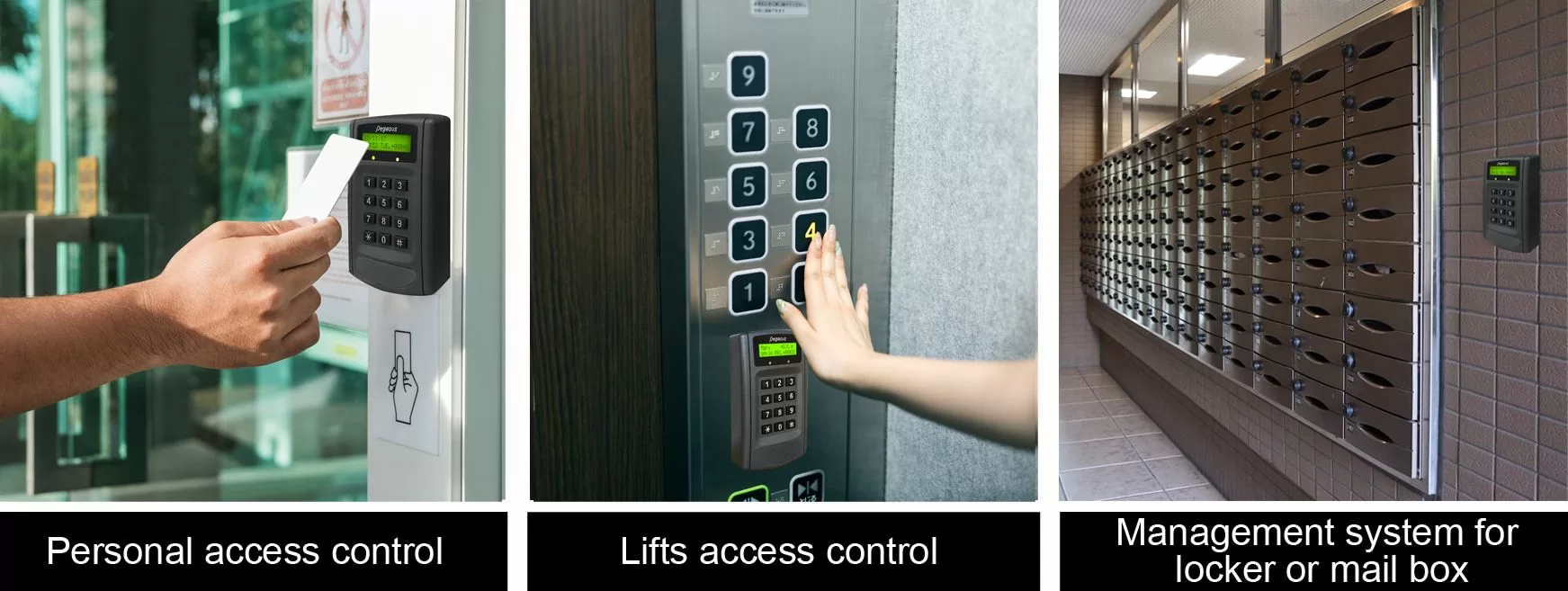

Application field
Dimension: mm
Ordering information
| PP-6750VXHR5 | H.I.D. controller&reader,32000 users,32000 events,RS485 |
|---|---|
| PP-6750VXM0JR5 | Mifare UID&J Type controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXM0NR5 | Mifare UID&EM controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXM0R5 | Mifare UID controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXM8R5 | Mifare controller&reader,32000 users,32000 events,RS485 (Pegasus Key) |
| PP-6750VXNR5 | EM controller&reader,32000 users,32000 events,RS485 |
| PP-6750VXNR5T3 | EM controller&reader,32000 users,32000 events,RS485, TCP/IP |
| PP-6750VXM3R5 | M3 Access controller & reader, 32000 users, 32000 events, RS485(Applied with Anti-duplicate card) |
| PP-6750VXNR5T3-DIM | EM controller&reader, 32000 users,32000 events,RS485 & TCP/IP |
| PP-6750VXHR5T3-DIM | H.I.D. controller&reader, 32000 users,32000 events,RS485 & TCP/IP |
| PP-6750VXM0R5T3-DIM | Mifare UID controller&reader, 32000 users,32000 events,RS485 & TCP/IP |
| PP-6750VXM3R5T3-DIM | M3 controller&reader, 32000 users,32000 events,RS485 & TCP/IP(Applied with Anti-duplicate card) |
| PP-6750VXFR5T3-DIM | Felica controller&reader, 32000 users,32000 events,RS485 & TCP/IP |
| PP-6750VL/M0R5-TFO | Mifare UID controller&reader, 2000 users,1000 events,RS485,ARM/DISARM Security System |
| PP-6750VXM0R5-ALD | Mifare UID controller&reader, 32000 users,32000 events,RS485,Toggle in/out status |
| PP-6750VX/M1R5-ARC | Mifare controller&reader,32000 users,32000 events,RS485,(Pay-per-daily) |
| PP-6750VX/M1R5-FLV | Mifare controller&reader,32000 users,32000 events,RS485,(Pay-per-use) |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
