Multi-Function Networked controller (TCP/IP)
Features
- Single door (one-way or two-way control)
- Classic Graphic Display Multi-Function Controller
- Support 32000 Cards (Standalone/Networked)
- Built-in LED and Buzzer indicator, door bell
- Multiple access method: Card only, PIN code only, Card with PIN code
- IP54 weatherproof for indoor/outdoor use
Specification
| MODEL NO. | PP-3702XNT | PP-3702XHT | PP-3702XM0T | PP-3702XFT | |
|---|---|---|---|---|---|
| FREQUENCY | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | |
| COMPATIBILITY | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(optional) | ISO18092 FeliCa | |
| USER CAPACITY | 32000 card capacity ; 32000 events | ||||
| POWER VOLTAGE | DC 12V | ||||
| INTERFACE | RS-485, TCP/IP, RS-232(Optional) | ||||
| WIEGAND INPUT | Wiegand (26/34 bits) | ||||
| INPUT | Exit push button / Door monitor / Security sensor | ||||
| OUTPUT | Alarm output / Tamper switch output / Electric lock output | ||||
| LCD PANEL | YES | ||||
| KEYPAD | YES | ||||
| MATERIAL | ABS | ||||
| DIMENSIONS (LXWXH)MM | 174x100x43 | ||||
| IP RATING | IP54 | ||||

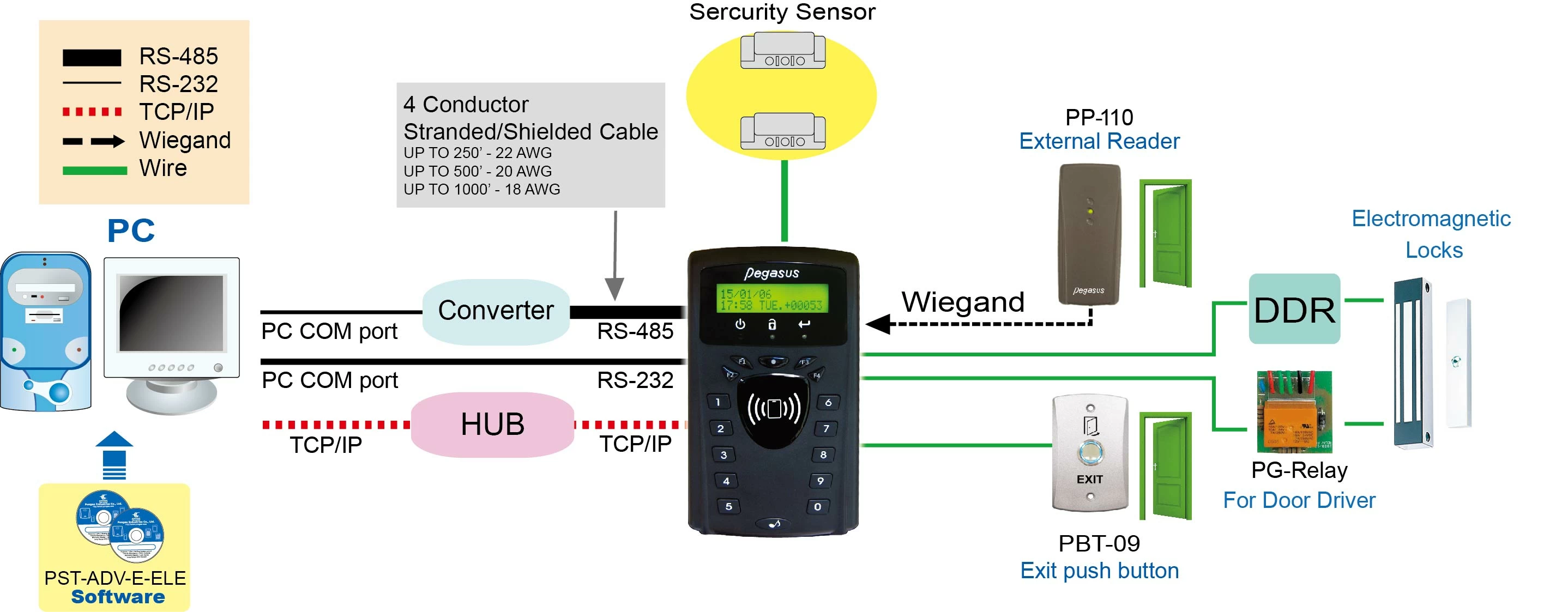

System configuration

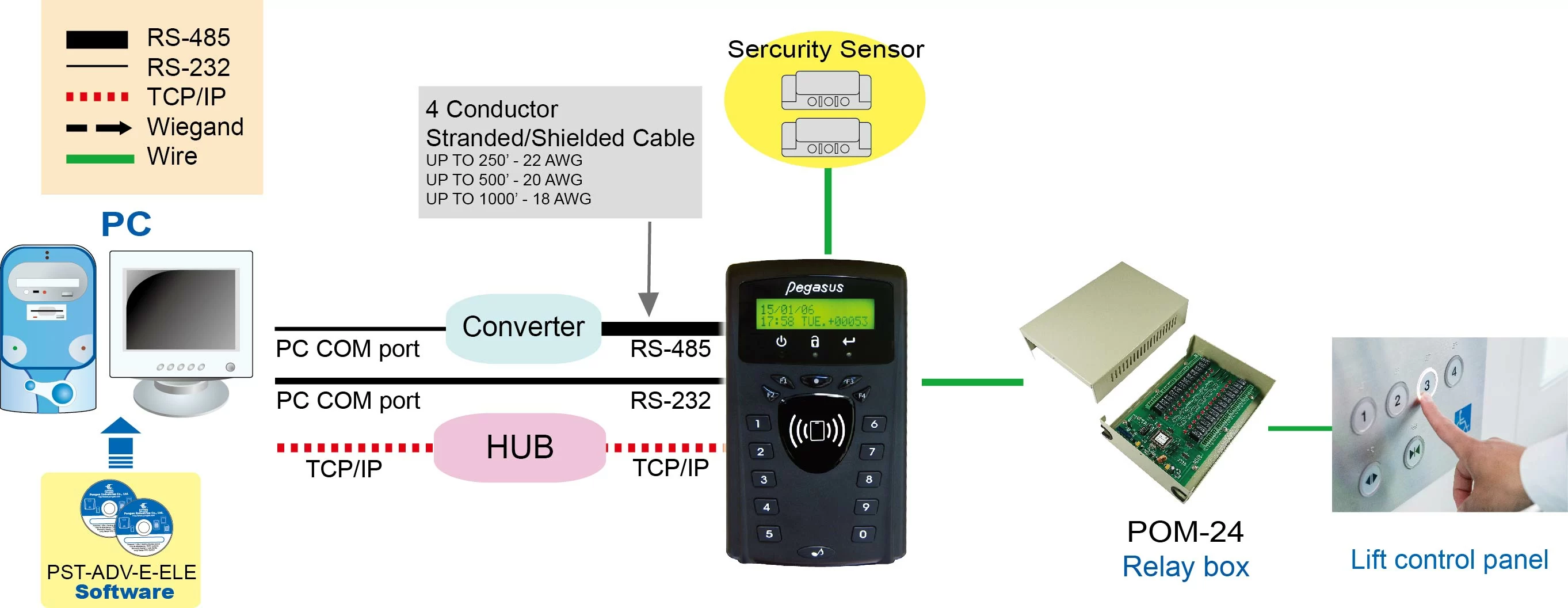

Lift access control system

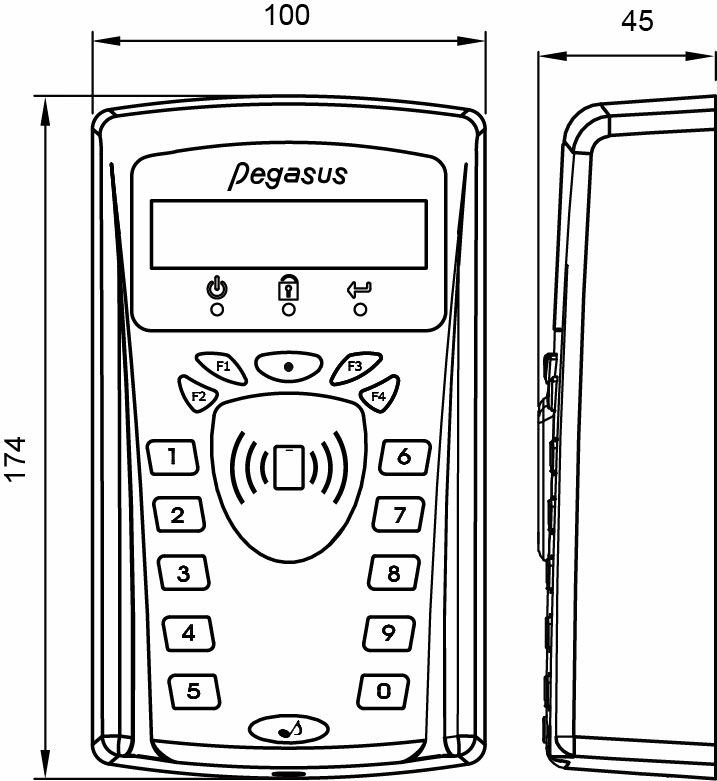

Dimension: mm
Ordering information
| PP-3702XM0T1 | Mifare UID controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XNT1 | EM controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XHT1 | H.I.D. controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XFT1 | FeliCa controller & reader,32000 users,32000 events, TCP/IP, RS485 |
| PP-3702XNM0T1 | Mifare UID & EM controller & reader,32000 users,32000 events, TCP/IP, RS485 |
Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
