Mullion Weatherproof Digital Access Keypad
Features
- ABS case with plastic keypad, compact and low profile.
- With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.
- Non-volatile memory for 10-100 years data retention without any battery backup.
- DC 12V operated therefore battery operation is possible when AC power is interrupted.
- Intelligent programmable functions through keypad by LED's and audible beep's indication.
- 7 independent codes from 4 to 8 digits, up to 99,999,999 combinations.
- Programmable door release time, alarm time from 1 to 99 period through keypad.
- With doorbell function.
Specifications
| POWER SUPPLY | DC 12V, 21mA standby, 55mA on relay operation |
|---|---|
| MONITOR INPUTS | Door contact, Exit push button, Case tamper |
| MONITOR OUTPUTS | Exit push button. alarm output, tamper switch alarm output |
| WEATHERPROOF | Yes |
| PASSCODE | Programmable from 4 to 8 digits |
| OPERATION TEMPERATURE | 0°C ~ 50°C |
| HUMIDITY | 20%~90% RH, Non condensation |

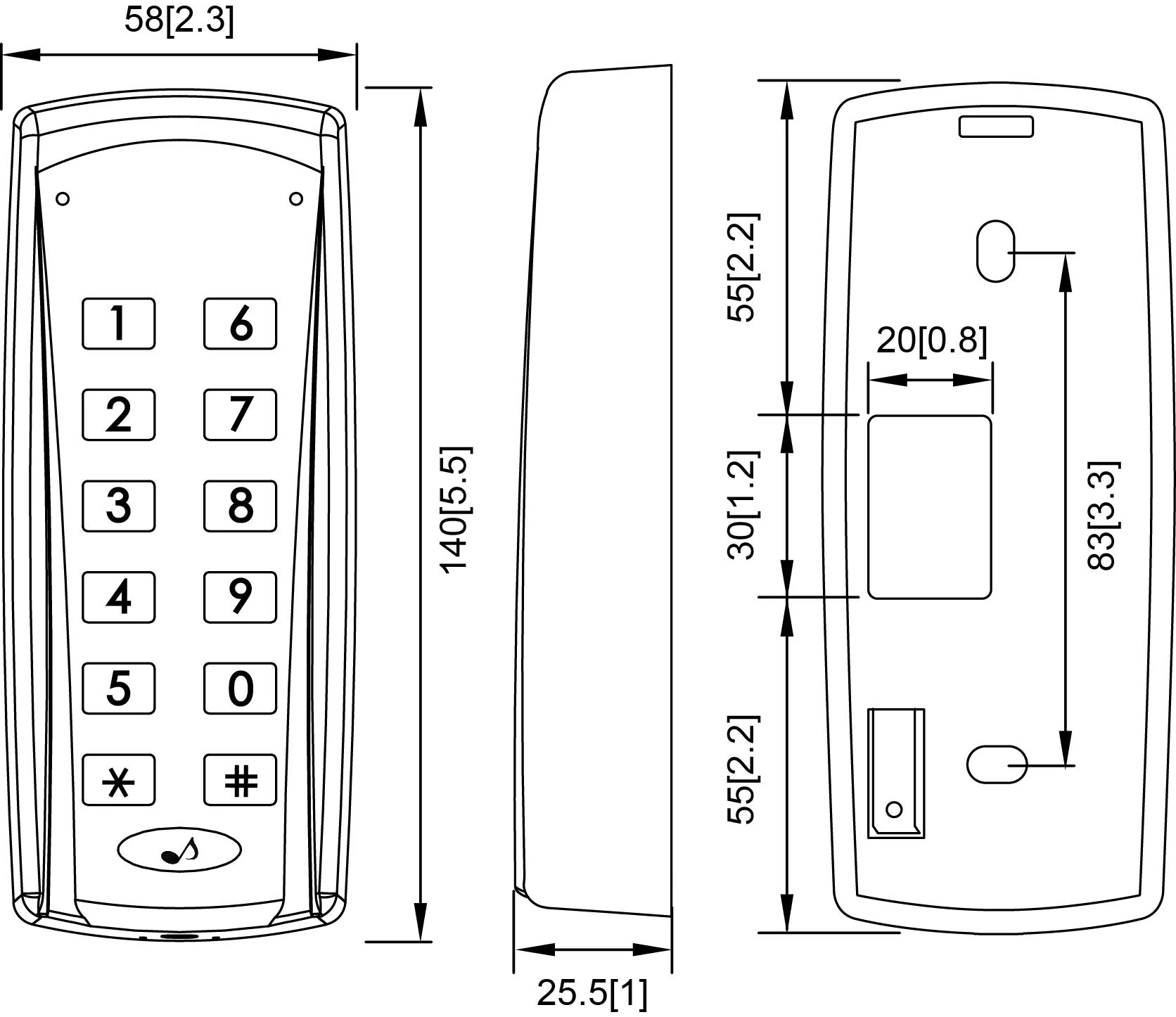

Dimensions: mm[inch]
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PG-104K | 2025-10-31 | Digital Access Control Keypad Catalog |
