Flush-Mount Touchless Infrared Sensor Button

Flush-Mount Touchless Infrared Sensor ButtonFlush-Mount Touchless Infrared Sensor ButtonFlush-Mount Touchless Infrared Sensor Button

Model number： PBT-186IRC

Selection Guides For Infrared Sensor Switch Series
Inquiry
Quantity
    Share


    Features

    • Form C relay output (1A@30VDC)
    • Adjustable output time 1~15 sec. Trigger / Toggle
    • Adjustable sensing range 1.5~10cm
    • Voltage : 10V/24V DC/AC (auto-adjusting)

    Specification

    Model No.PBT-186IRC
    Dimensions(mm)Flush-Mount Touchless Infrared Sensor Button
    Voltage / CurrentDC10V (145mA)~24V(65mA)
    AC10V(177mA)~24V(110mA)
    Relay typeForm C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC
    Output time1~15 sec, Trigger / Toggle
    Sensor Range1.5~10cm
    LED Status indicatorPower on: Blue, Proximity: Green
    Case materialIR SensorUV & Fire Polycarbonate
    Face plateABS
    IP Rating---
    Operating lifeRelay: 100,000 cycles

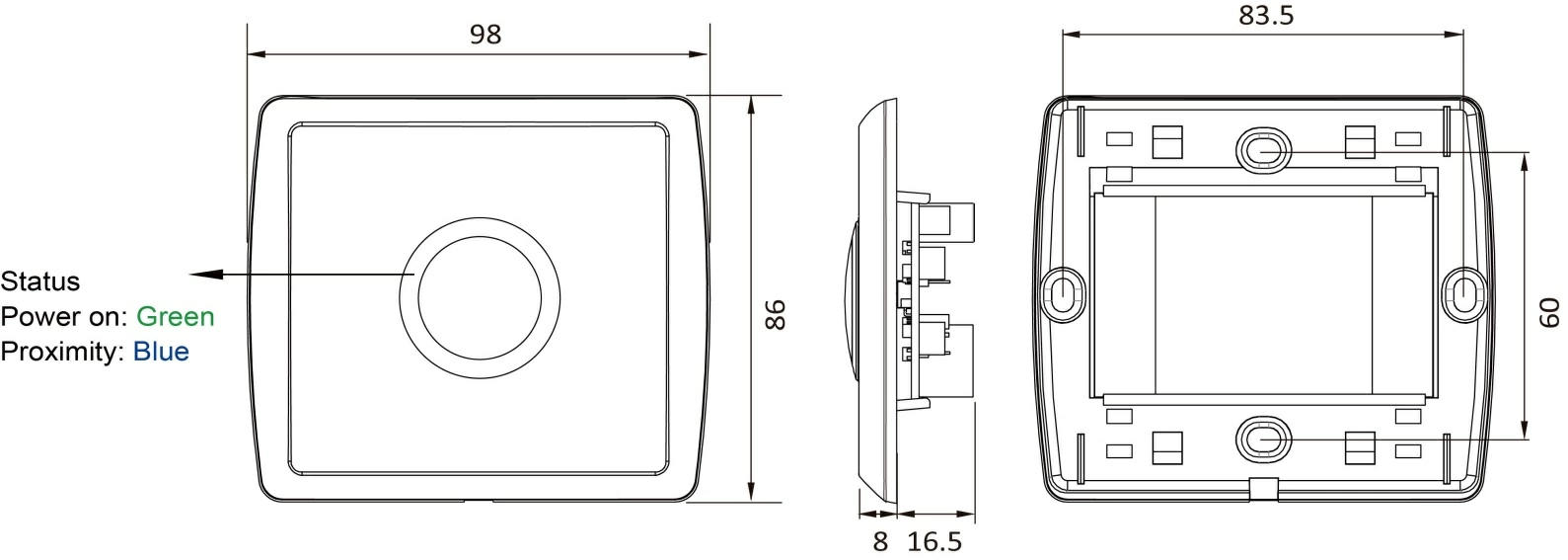

    Dimension: mm

    Flush-Mount Touchless Infrared Sensor Button

    How to assembly

    /storage/system/Exit_push_button/PBT-186IR/R-21-86-2_EU_standard.jpg

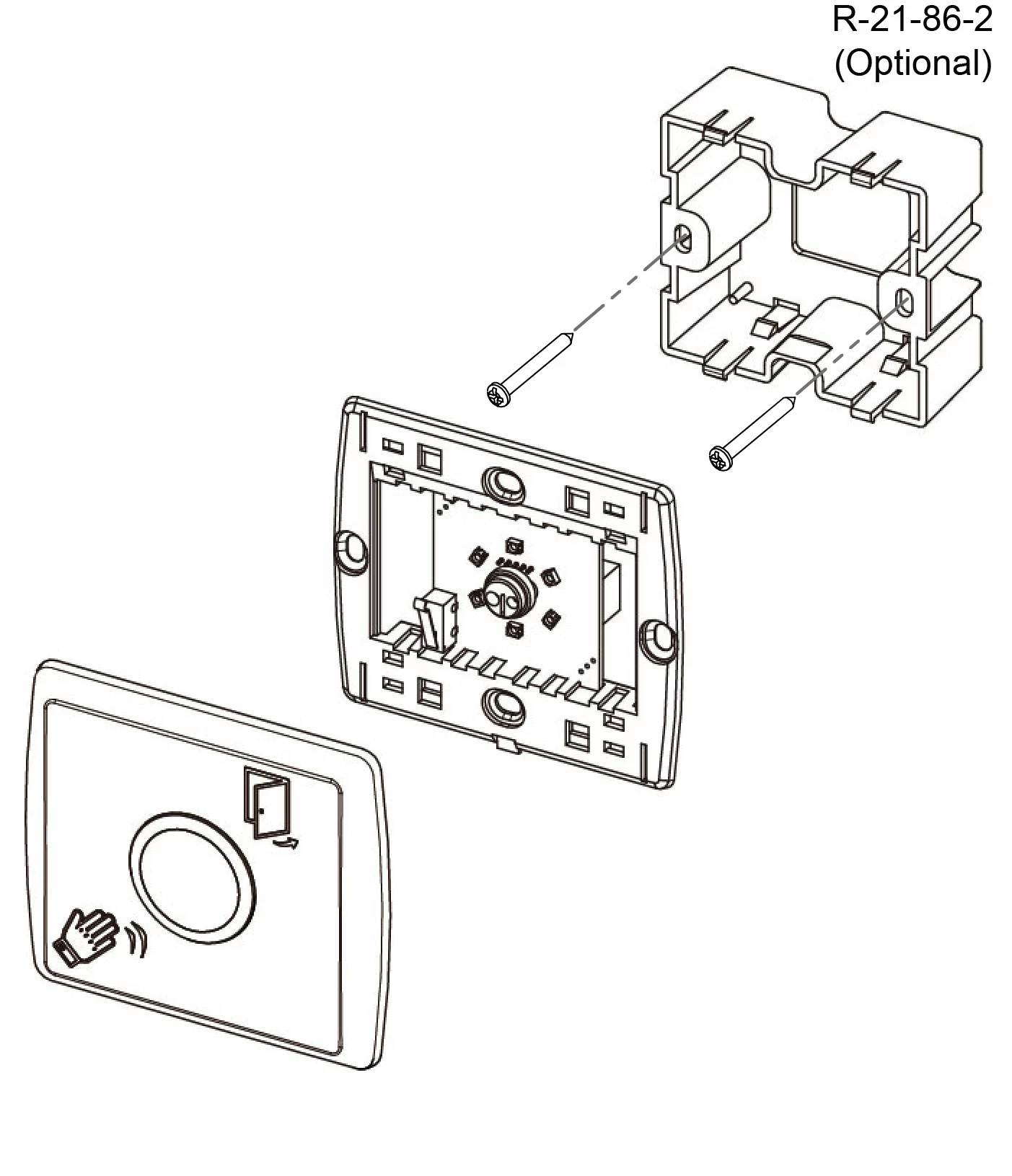

    Mounting box for EU standard

    /storage/system/Exit_push_button/PBT-186IR/PK-BOX3_US_standard.jpg

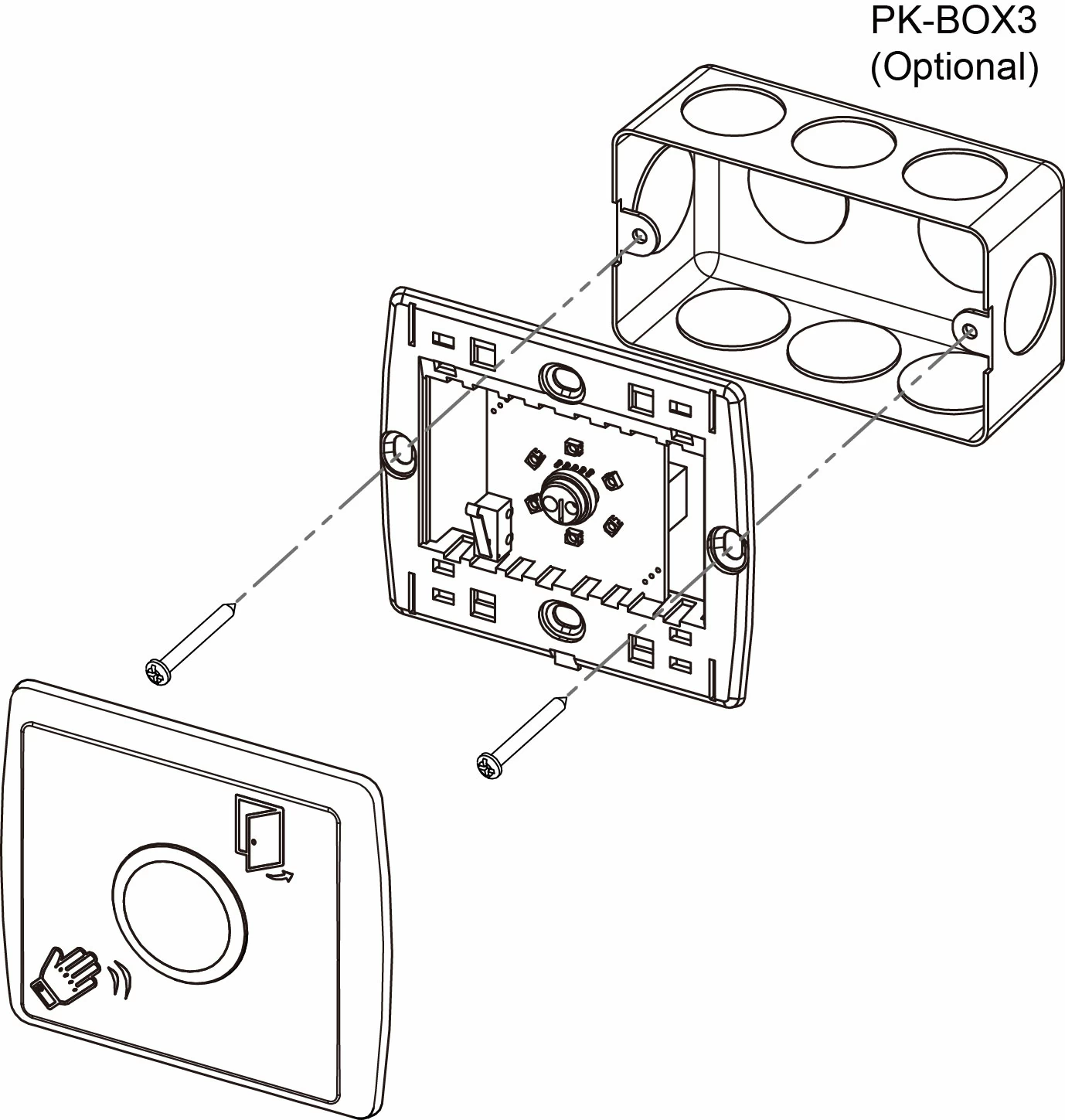

    Mounting box for US standard

    Example Applications

    /storage/system/Exit_push_button/PBT-30IR/Application-for-IR-sensor(22E).jpg

    We reserve the right to change the specification without prior notice or obligation!

    proimages/declaration-from-Pongee-Taiwan.jpg

    Download

    #NameUpload DateDescriptionDownload
    1
    PBT-186IRC
    2024-07-19
    Touchless Infrared Sensor Button
      PBT-186IRC
