Fingerprint access controller
Features
- Fingerprint proximity reader support 1000 fingerprint capacity
- Support 125KHz & 13.56MHz
- PC base or standalone
- Possible in 8 digits ID for time attendance recording.
- With complete door release, held monitoring and intruded alarm period and error trials
Specifications
| Model No. | PFP-8036D | PFP-8036M | |
|---|---|---|---|
| Frequency | 125KHz & 13.56MHz | 13.56MHz | |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 ISO14443 A, MIFARE | ISO14443 A, MIFARE | |
| Fingerprint Capacity | 1,000 | ||
| User Capacity | 1,000 card capacity, 100,000 events | ||
| Battery | YES | ||
| USB disk | YES | ||
| Power Voltage | DC 9V | ||
| Interface | RS-232 / RS-485/ TCP/IP(Optional) | ||
| Wiegand input | Wiegand (26/34 bits) | ||
| Keypad | YES | ||
| Material | ABS | ||
| Dimensions (LxWxH)mm | 175x130x45 | ||

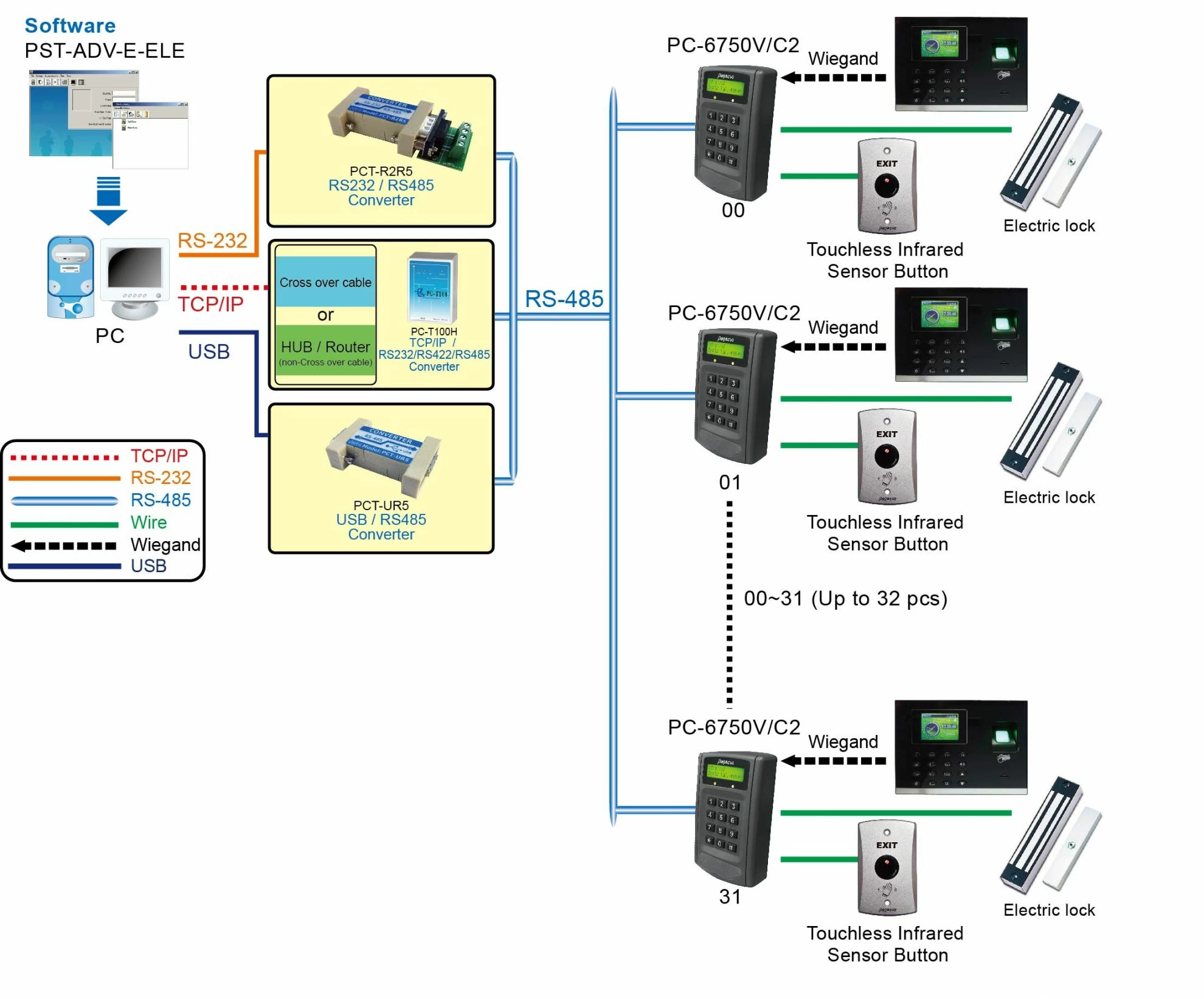

Data communication

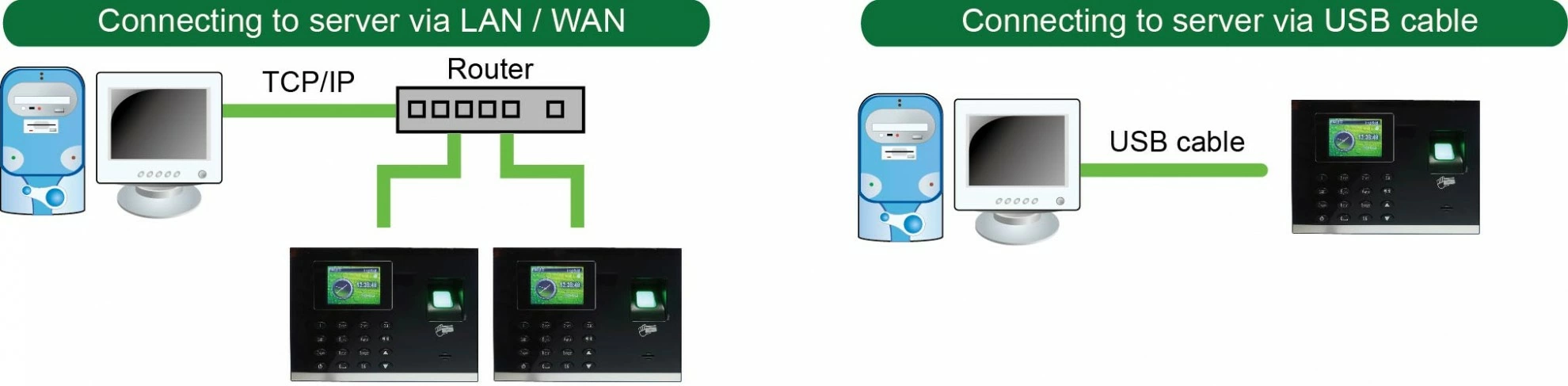

Configuration 1

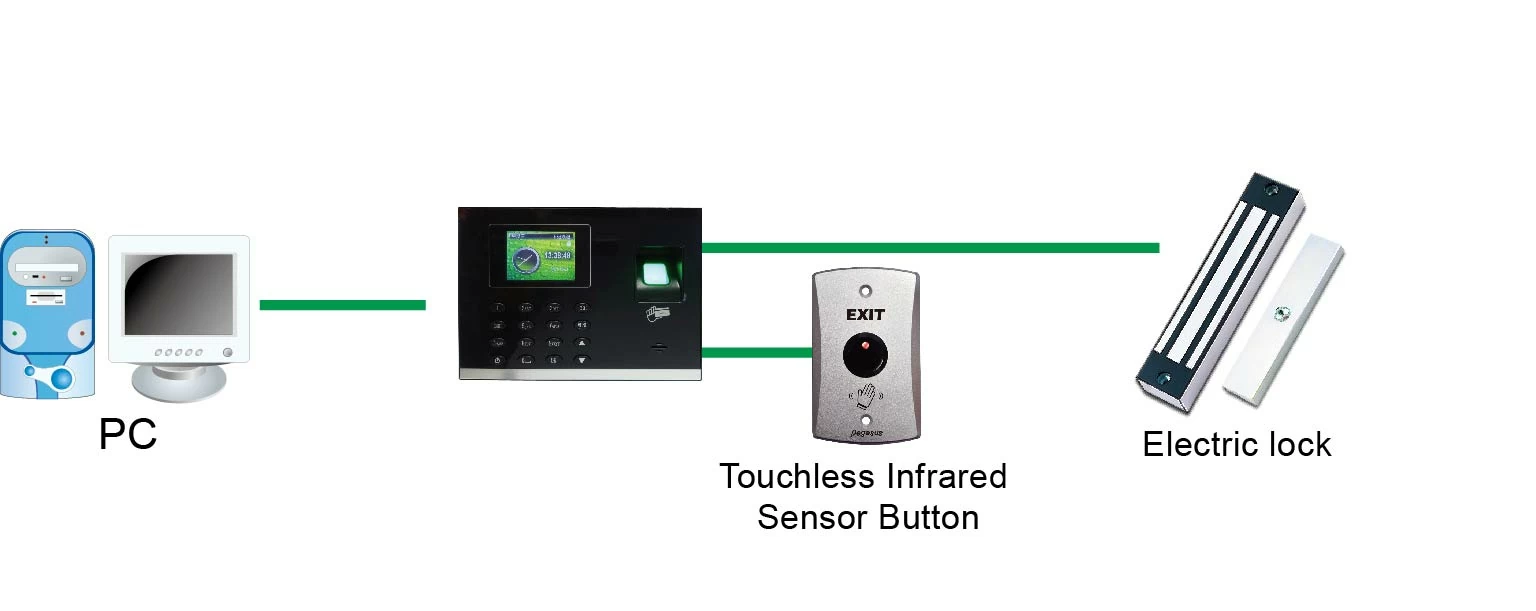

Configuration 2
Mifare is a registered trademark of NXP B.V.
We reserve the right to change the specification without prior notice or obligation!
Download
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
1 | PFP-8036D | 2025-09-15 | Fingerprint Access Controller Catalog |
