Fail Secure / Fail Safe Electric Strike
Features
- Fail Secure / Fail Safe Electric type
- SW: Support door monitoring switch
- All metal construction, safe and durable
- Suitable for Aluminum door, wooden door
Specification
| MODEL NO. | PGS-706FS | PGS-706NSA | ||
|---|---|---|---|---|
| PGS-706NS/SW | ||||
| PGS-706NS/SW-24V | ||||
| TYPE | Fail Safe | Fail Secure | ||
| VOLTAGE /CURRENT | DC12V (200mA) / DC24V (100mA) | |||
| DOOR MONITORING SWITCH | YES | |||
| LATCH BOLT | 8mm | |||

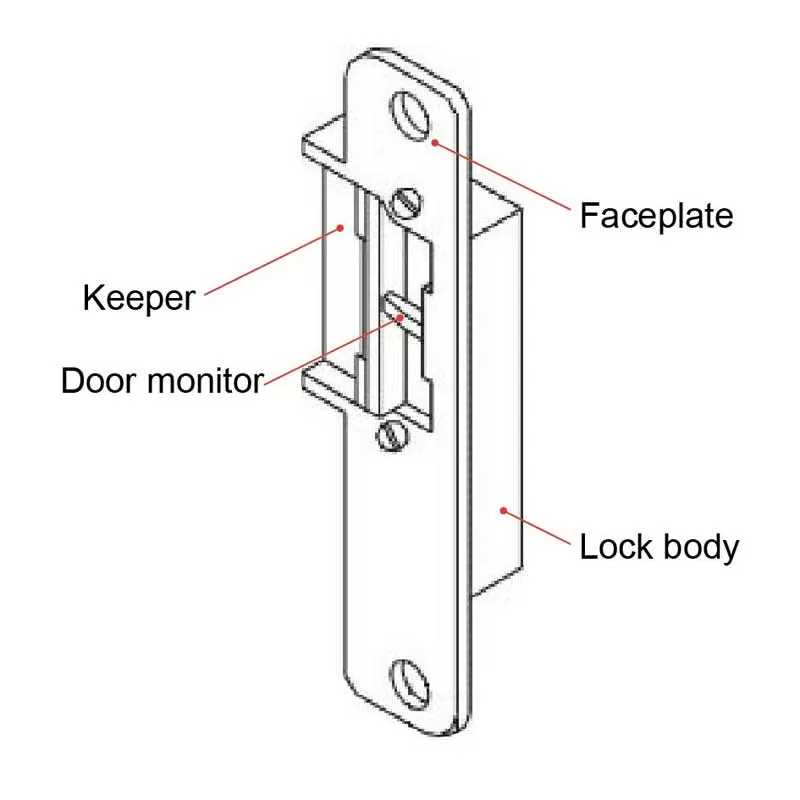

| MATERIAL | FACEPLATE | Zinc alloy | ||
| LOCK BODY | Zinc alloy | |||
| KEEPER | Zinc alloy | |||
| DIMENSIONS(LXWXD)MM | FACEPLATE | 150x30x3 | ||
| LOCK BODY | 104x22x28 | |||
| NET WEIGHT (G) | 360g±1% | |||
Dimension: mm
| Installation for Wooden Door | Installation for Metallic Door |
 |  |
Ordering information
| PGS-706FS | Fail Safe Electric Strike, DC 12V |
| PGS-706NSA | Fail Secure Electric Strike, DC 12V |
| PGS-706NS/SW | Fail Secure Electric Strike, with door monitoring switch, DC 12V |
| PGS-706NS/SW-24V | Fail Secure Electric Strike, with door monitoring switch, DC 24V |
