Electric Dropbolt(Drop to hold position by magnetic)

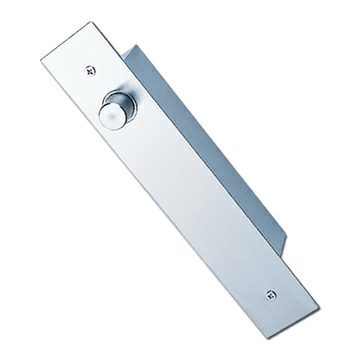

DA-62AD Electric Deadbolt Lock (Drop to hold position by magnetic)

Model number： DA-62AD

Selection Guides For Electric Drop Bolt
Inquiry
Quantity
    Share

    Product Description
    •For access control systems with high traffic doors which are fail-safe operation.
    •Operation: Drop to hold position by magnetic.
    •Release as power off.
    •With magnetic switch for sensoring door position.
    •With door monitoring and adjustable door release monitoring time.(3, 6, 10sec.)

    •With adjustable timer to lock.
    •With electronics control for over heating.

    Specifications
    •Approx. weight: 750g
    •Nominal voltage: DC12V
    •Voltage tolerance: 10%
    •Standby current: 290mA
    •Working current :950mA
    •Temp. range: -20°C ~ 70°C
    •Power consumption: 3.2W(standby) / 11W(work)

    Application
    For emergency door, swing glass door, wooden door

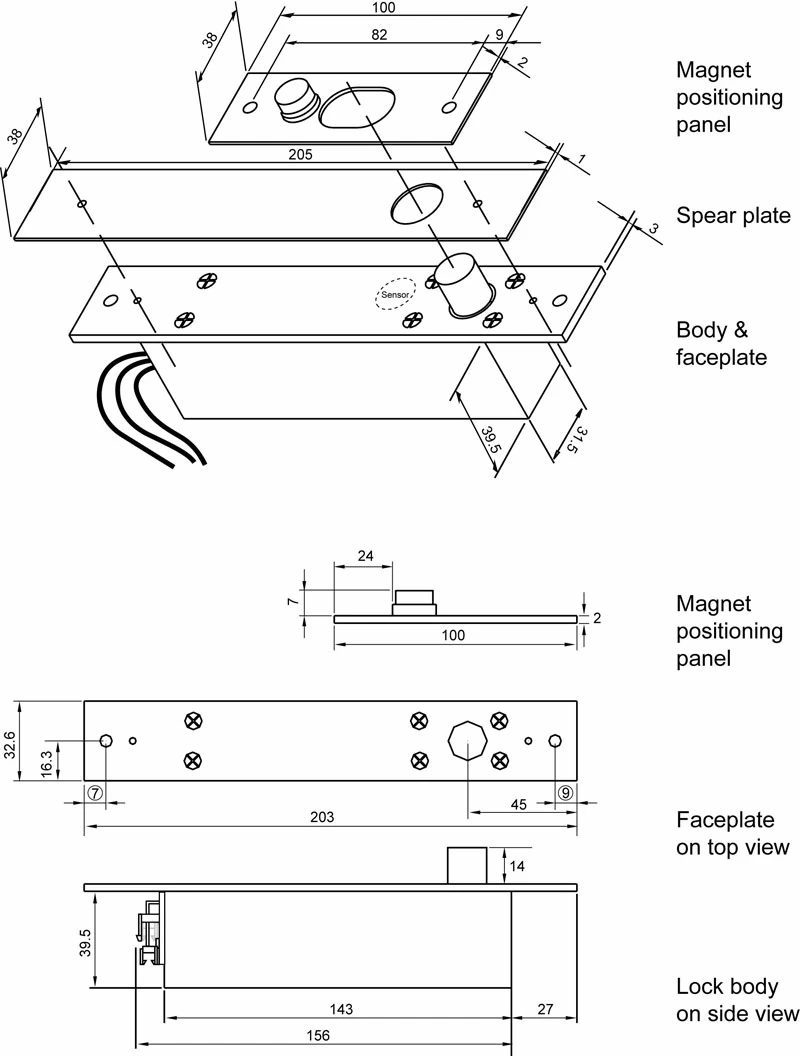

    Dimension:Unit(mm)

    proimages/electric_lock/Dimension-for-DA-62ADE.jpg

    Accessories
    Fixed bracket PG-STC  proimages/electric_lock/bracket/PG-STC.jpg

    How to order
    DA-62A/D:    Fail safe type electric drop bolt, DC12V
    DA-62A/D-24V:Fail safe type electric drop bolt, DC24V

    We reserve the right to change the specification without prior notice or obligation!
