ANSI standard Fail-Secure Electric Strike
Model number： PGS-502NS
Inquiry
Features
- The PGS-502 is a ANSI size electric door strike.
- Fail-Secure Type.
- Could be continuously energized.
- For heavy duty door.
- Holding force: 1200Kg
- Endurance:1,000,000 cycles.
Specifications
| Model No. | PGS-502NS | |||
|---|---|---|---|---|
| Type | Fail Secure | |||
| VOLTAGE /CURRENT | DC12V (400mA) | |||
| DOOR MONITORING SWITCH | NO | |||
| LATCH BOLD | Up to 15mm | |||
| Maximum for door latch | 38(W) x16(H)mm | |||
| MATERIAL | FACEPLATE | Aluminum / Stainless steel | ||
| LOCK | Aluminum alloy | |||
| KEEPER | Stainless steel | |||
| DIMENSIONS(LXWXD)MM | FACEPLATE | 123.7x31.6 / 201.6x36.3 | ||
| LOCK | 85x32x32 | |||
| NET WEIGHT (G) | PGS-502NS:205g±1% PGS-502NSL:320g±1% | |||

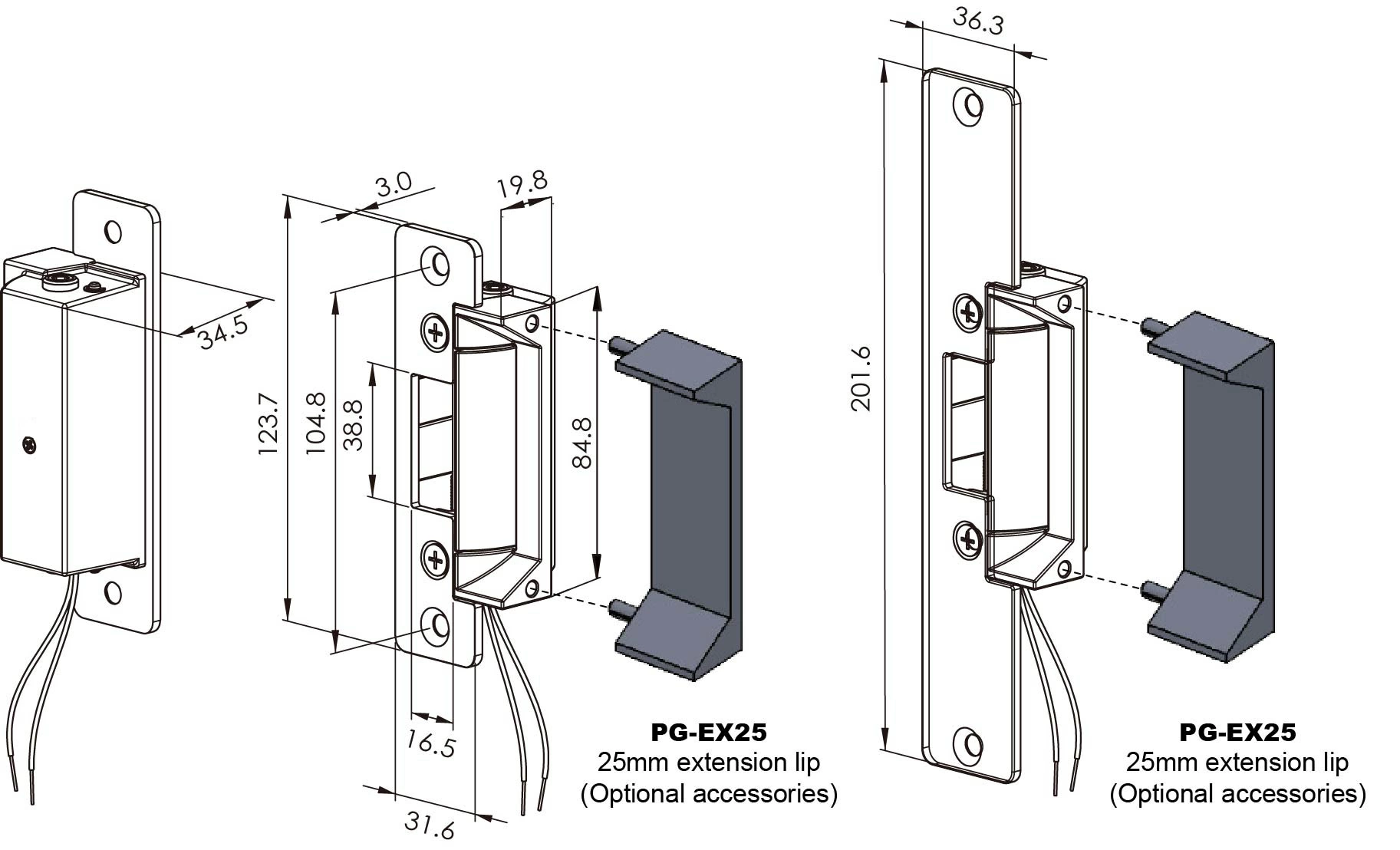

Dimensions: mm
Optional accessories

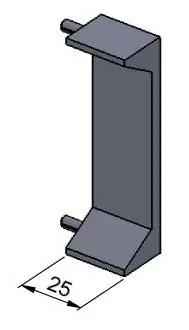

PG-EX25
25mm extension lip

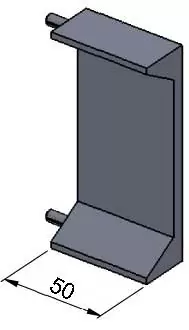

PG-EX50
50mm extension lip
Ordering information
| PGS-502NS | : ANSI Standard electric strike, front plate: 123.7x31.6mm, aluminum, DC12V |
| PGS-502NSL | : ANSI Standard electric strike, front plate: 201.6x36.3mm, aluminum, DC12V |
| PGS-502NSS | : ANSI Standard electric strike, front plate: 123.7x31.6mm, stainless steel, DC12V |
| PGS-502NSSL | : ANSI Standard electric strike, front plate: 201.6x36.3mm, stainless steel, DC12V |
We reserve the right to change the specification without prior notice or obligation!
